Gloss Poster — ASME Section VIII Weld Joint Categories Reference Poster

Gloss Poster — ASME Section VIII Weld Joint Categories Reference Poster

$15.99 USD
Shipping calculated at checkout.

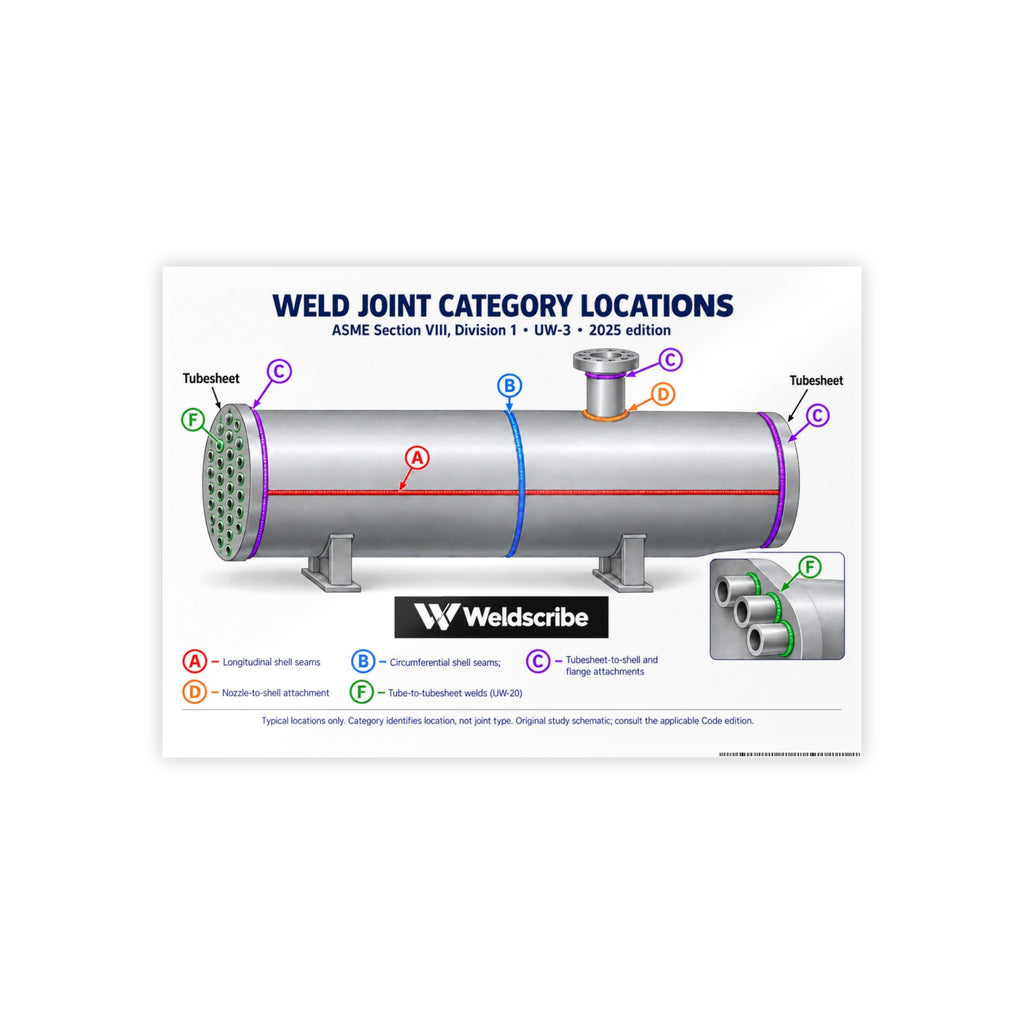

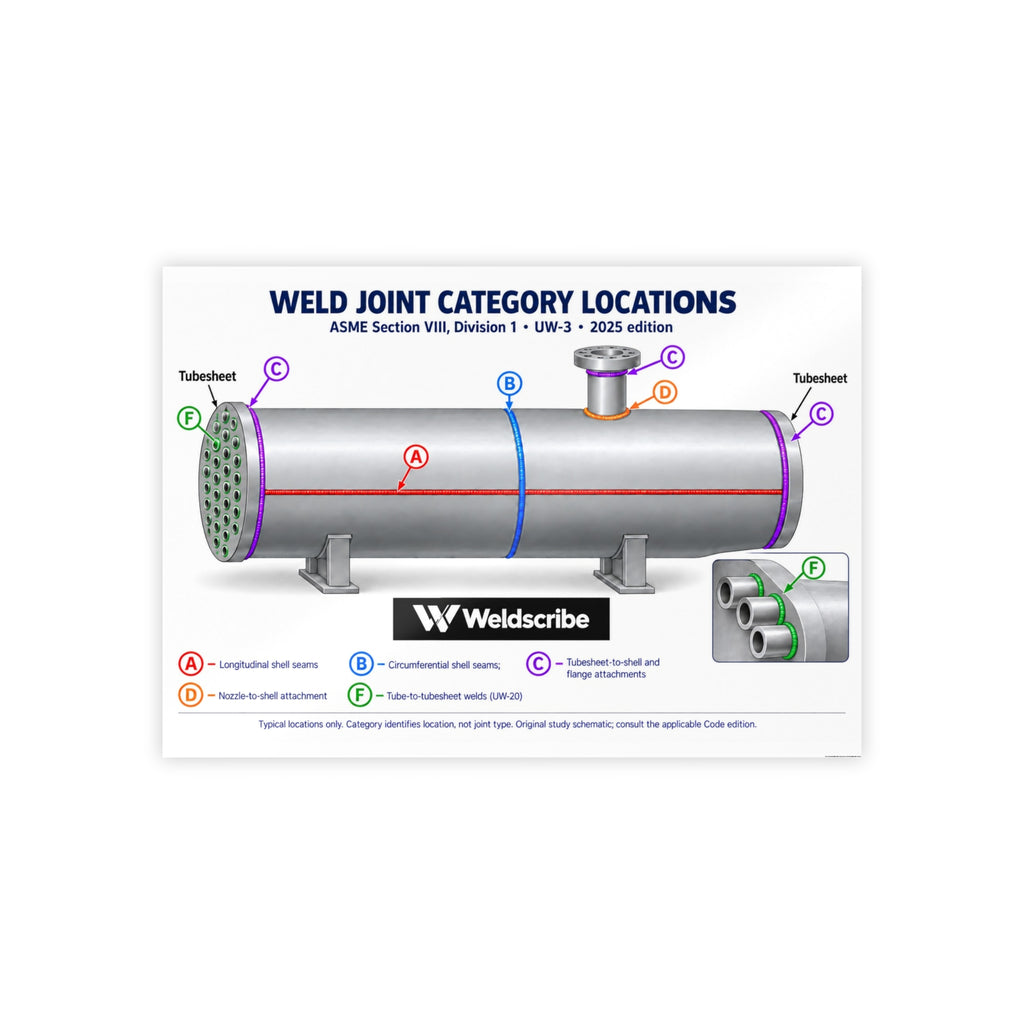

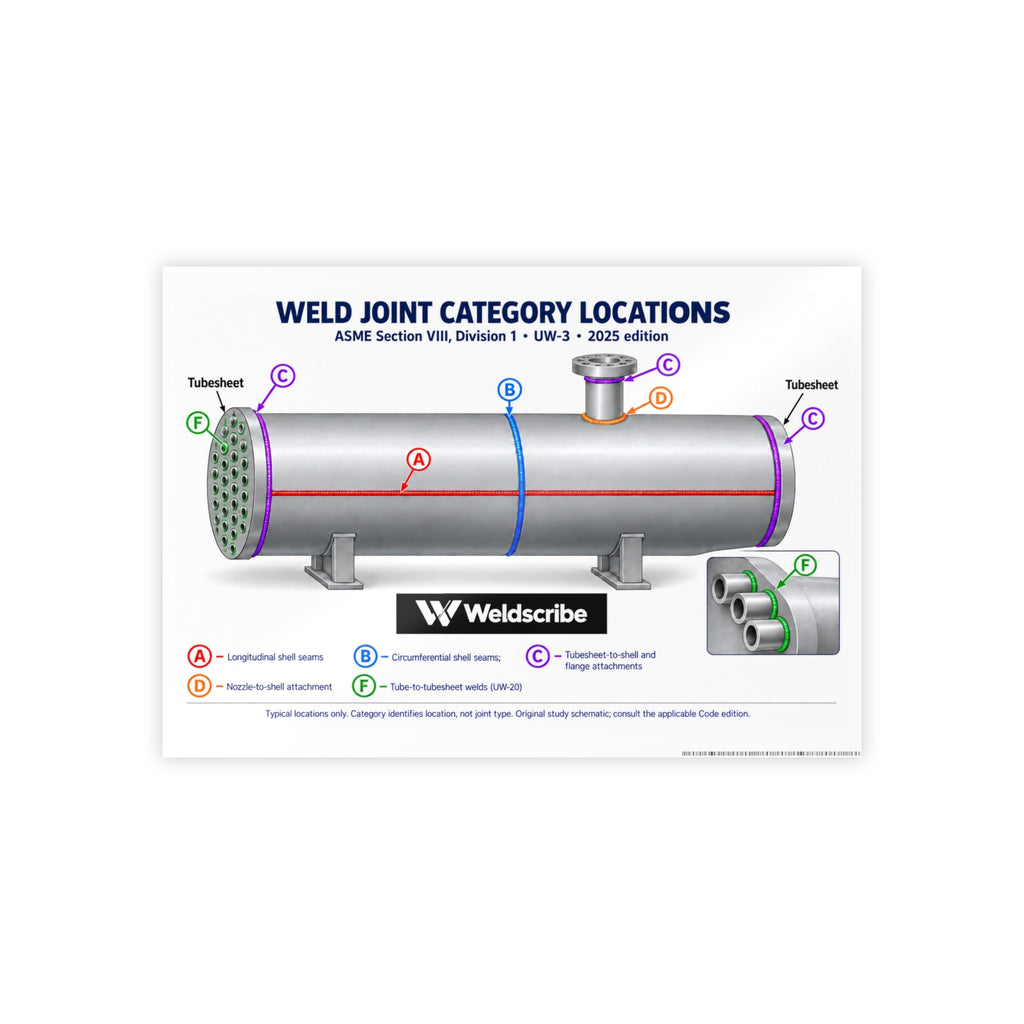

Keep ASME Section VIII, Division 1 weld joint Categories A, B, C, D, and F in view with a printed gloss reference poster for pressure vessel welding review, classrooms, and engineering offices.

What you get

  • Printed visual reference for weld joint Categories A, B, C, D, and F
  • Section VIII, Division 1 context

Format: Printed glossy poster. Select a size before checkout; shipping is calculated at checkout. No digital file is included.

Available sizes: 16.5 × 11.7, 23.4 × 16.5, 33.1 × 23.4, and 46.8 × 33.1 in. (horizontal). Select the size shown in the variants above.

Who it helps: Welding engineers, inspectors, supervisors, quality teams, and welding educators reviewing qualification requirements.

Browse ASME Section VIII welding references or compare welding reference posters.

Reference note: Independently developed by WeldScribe using the 2025 edition of ASME BPVC Section VIII, Division 1. Not issued or endorsed by ASME. Use the governing Code, table notes, approved procedures, and project requirements for decisions.
